肽核酸研究平台
赛百盛为肽核酸合成提供专业的解决方案
什么是肽核酸(PNA)?
肽核酸 (Peptide Nucleic Acid,PNA) 是一种人工合成的类似于 DNA 或 RNA的聚合物,最初是由Peter E.Nielsen和他在哥本哈根大学的同事于1991年合成的 [1]。
肽核酸的基本单位是N-(2-氨基乙基)甘氨酸,由通过肽键连接形成聚合物 [2]。核酸碱基(ATCG)通过亚甲基羰基键而不是通常的脱氧核糖(DNA)或核糖(RNA)连接到主链上。与DNA或RNA双链相比,肽核酸与DNA或RNA可以形成更稳定的双链结构,并且这一结构代谢稳定。
特点
高结合亲和力

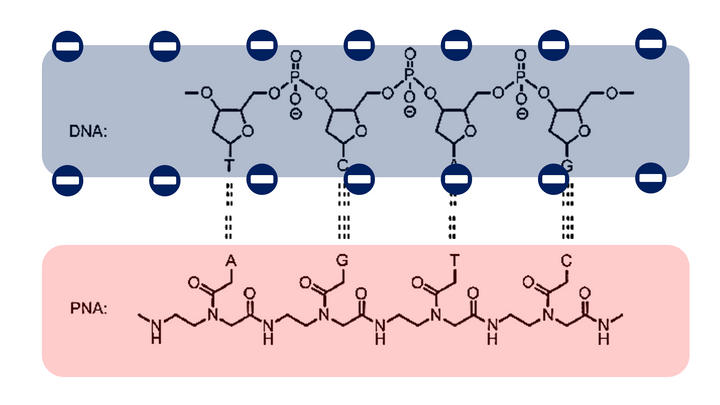

电荷中性骨架允许PNA通过Watson-Crick氢键与DNA或RNA结合,其结合亲和力明显高于带负电荷的DNA寡聚体 [3]。
高特异性

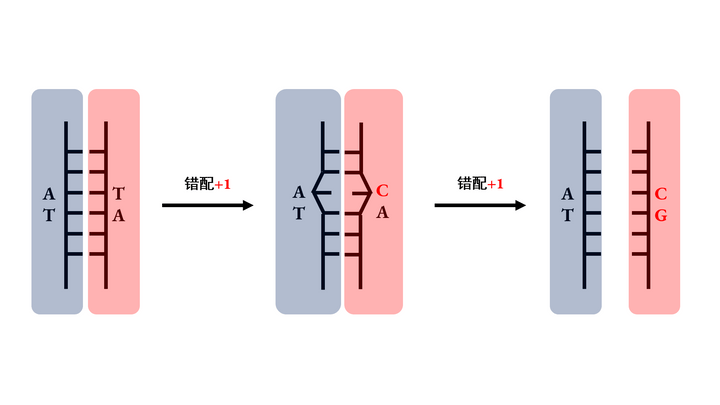

PNA序列对目标位点具有极高的特异性。如果有一个错配,则结合亲和力显著降低;如果有两个错配,则不会发生杂交 [4]。
高稳定性
PNA可以在DNA或者RNA降解的条件下依然表现出很强的化学稳定性和热稳定性 [5]。

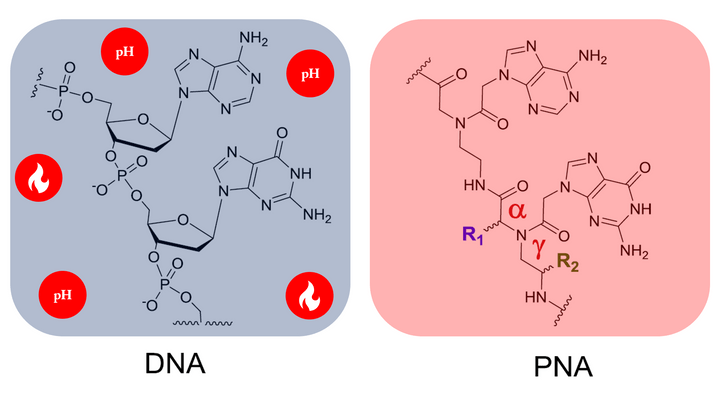

PNA 和 DNA 的对比
特征
结合亲和力
杂交速率
杂交中的盐浓度
单碱基错配的ΔTm值
化学稳定性
生物稳定性
溶解度
一般探针长度
PNA
每个碱基至少高1°C的Tm值
快100-5000倍
独立
<10°C
稳定
耐酶
适中(但可通过简单修饰改善)
13-18个碱基
DNA
-
-
依赖
<15°C
在酸性或碱性条件下不稳定
被核酸酶降解
良好
25-30个碱基
应用
反义失活
由于PNA具有高结合亲和力,所以可以设计PNA靶向mRNA,通过空间干扰以影响其作用 [6]。
核酸检测
PNA独特的杂交特性和代谢稳定性使其非常适合于复杂的生物环境体系中的核酸检测 [7]。
基因编辑
PNA能够结合dsDNA并进行基因编辑。经过特定修饰以后,PNA介导的基因编辑的脱靶效应极弱 [8]。
解决方案
肽核酸(PNA)定制询价肽核酸(PNA)FISH 探针询价肽核酸(PNA)miRNA 抑制剂询价球蛋白去除肽核酸(PNA)询价Fmoc PNA 单体询价肽核酸(PNA) CRE 检测试剂盒询价肽核酸(PNA) STD 检测试剂盒询价肽核酸(PNA) HPV 筛选试剂盒询价肽核酸(PNA) HPV 基因分型试剂盒询价肽核酸(PNA) ROS1 突变检测试剂盒询价肽核酸(PNA) EML4-ALK 突变检测试剂盒询价肽核酸(PNA) TERT 突变检测试剂盒询价肽核酸(PNA) c-KIT 突变检测试剂盒询价肽核酸(PNA) JAK2 突变检测试剂盒询价肽核酸(PNA) BCR-ABL 突变检测试剂盒询价肽核酸(PNA) PIK3CA 突变检测试剂盒询价肽核酸(PNA) IDH2 突变检测试剂盒询价肽核酸(PNA) IDH1 突变检测试剂盒询价肽核酸(PNA) BRAF 突变检测试剂盒询价肽核酸(PNA) EGFR 突变检测试剂盒 V2询价PNA单体
立即购买Boc-PNA-U-OH | 149500-74-3¥3,200.00 - ¥144,000.00立即购买Boc-PNA-T-OH | 139166-80-6¥3,200.00 - ¥144,000.00立即购买Boc-PNA-G(Z)-OH | 169287-77-8¥3,200.00 - ¥144,000.00立即购买Boc-PNA-C(Z)-OH | 144564-94-3¥3,200.00 - ¥144,000.00立即购买Boc-PNA-A(Z)-OH | 149376-69-2¥3,200.00 - ¥144,000.00立即购买Fmoc-PNA-T-OH | 169396-92-3¥8,750.00 - ¥13,300.00立即购买Fmoc PNA-G-(Bhoc)-OH | 186046-83-3¥12,250.00 - ¥20,300.00立即购买Fmoc PNA-C(Bhoc)-OH | 186046-81-1¥10,500.00 - ¥16,800.00立即购买Fmoc PNA-A(Bhoc)-OH | 186046-82-2¥10,500.00 - ¥16,800.00了解更多
2024年11月3日查看更多...原则上,荧光原位杂交(FISH)能够提供个别染色体端粒长度的信息。直接标记的寡核苷酸探针是这种分析的理想选择,它们体积小、渗透性能好、单链且无需变性,同时合成过程可控。然而,寡核苷酸杂交用于端粒...2023年11月3日查看更多...具体设计规则: 长度:合成 PNA 序列一般不超过 18 个碱基,但不包括接头、氨基酸和标记物。 含有氨基酸:可以把一个赖氨酸或半胱氨酸联在序列的 N 端或 C 端。 嘌呤含量:富含...2023年9月1日查看更多...关于肽核酸 肽核酸 (Peptide Nucleic Acid,PNA) 是一种人工合成的类似于 DNA 或 RNA 的聚合物。与多肽类似,各种嘌呤和嘧啶碱基通过亚甲基羰基连接到主链骨架上。...拓展阅读
[PNA-FISH] Rajat Gupta, et al.(2018)Cell.173:972-988
DNA Repair Network Analysis Reveals Shieldin as a Key Regulator of NHEJ and PARP Inhibitor Sensitivity
[PNA MDx] Hyun Sik Kim, et al.(2018)Pathol Res Pract. pii: S0344-0338(18)30181-X
Clinical implications of TERT promoter mutation on IDH mutation and MGMT promoter methylation in diffuse gliomas
[PNA MDx] Jae Young Hur, et al.(2018)Molecular Cancer 17:15
Extracellular vesicle-derived DNA for performing EGFR genotyping of NSCLC patients
[PNA probe] Zhu B and Travas-Sejdic J(2018)Analyst. 143(3):687-694
PNA versus DNA in electrochemical gene sensing based on conducting polymers: study of charge and surface blocking effects on the sensor signal
[PNA antisense drug] Baek A, et al.(2018)Bioconjug Chem. 29(2):528-537
Polyethylene Glycol-Engrafted Graphene Oxide as Biocompatible Materials for Peptide Nucleic Acid Delivery into Cells
[PNA probe] Hu Q, et al.(2018)Biosens Bioelectron. 101:1-6
Electrochemically mediated in situ growth of electroactive polymers for highly sensitive detection of double-stranded DNA without sequence-preference
[PNA-FISH] Wang L, et al.(2018)Nanotechnology. 29(28):285602
Single Molecule Localization Imaging of Telomeres and Centromeres Using Fluorescence in Situ Hybridization and Semiconductor Quantum Dots.
[PNA probe] Bala A and Górski Ł(2018)Bioelectrochemistry. 119:189-195
Peptide nucleic acid as a selective recognition element for electrochemical determination of Hg2
[PNA MDx] Jae-Uk Song and Jonghoo Lee(2018)Yonsei Med J. 59: 211-218
Peptide Nucleic Acid Clamping and Direct Sequencing in the Detection of Oncogenic Alterations in Lung Cancer: Systematic Review and Meta-Analysis
[PNA-FISH] Lafuente R, et al.(2018)Andrologia. 50(2)
Sperm telomere length in motile sperm selection techniques: A qFISH approach
[PNA MDx] Aeri Kim, et al.(2017)J Breast Cancer. 20:150-159
Mutations of the Epidermal Growth Factor Receptor Gene in Triple-Negative Breast Cancer
[PNA MDx] Chang Gon Kim, et al.(2017)Oncotarget. 8: 65111–65122
Detection of activating and acquired resistant mutation in plasma from EGFR-mutated NSCLC patients by peptide nucleic acid(PNA) clamping-assisted fluorescence melting curve analysis
[PNA MDx] Mi-young Park, et al.(2017) Oncotarget. 8:36331-36338
Generation of lung cancer cell lines harboring EGFR T790M mutation by CRISPR/Cas9-mediated genome editing
[PNA-FISH] Ting-Lin B. Yang(2017)Nat Commun. 8:14766
Mutual reinforcement between telomere capping and canonical Wnt signalling in the intestinal stem cell niche
[PNA MDx] C. G. Woo, et al.(2017)Annals of Oncology 28:791–797
Differential protein stability and clinical responses of EML4-ALK fusion variants to various ALK inhibitors in advanced ALK-rearranged non-small cell lung cancer
[PNA MDx] Ha Young Park, et al.(2016)Thoracic Cancer 7: 639–647
Quantification of epidermal growth factor receptor (EGFR) mutation may be a predictor of EGFR-tyrosine kinase inhibitor treatment response
[PNA MDx] Ji-Youn Han, et al.(2016)BMC Cancer 16: 627
PNA clamping-assisted fluorescence melting curve analysis for detecting EGFR and KRAS mutations in the circulating tumor DNA of patients with advanced non-small cell lung cancer
参考文献
- Nielsen, P. E. , et al. "Sequence-Selective Recognition of DNA by Strand Displacement with a Thymine-Substituted Polyamide." Science 254.5037(1992):1497-1500.
- Nielsen, Pe , and G. Haaima . "Peptide nucleic acid (PNA). A DNA mimic with a pseudopeptide backbone." Chemical Society Reviews 26.2(1997):p. 73-78.
- Egholm, M et al. “PNA hybridizes to complementary oligonucleotides obeying the Watson-Crick hydrogen-bonding rules.” Nature vol. 365,6446 (1993): 566-8.
- Nielsen, Peter E. , et al. "Sequence specific inhibition of DNA restriction enzyme cleavage by PNA. " Nuclc Acids Research 21.2(1993):197.
- Uhlmann, Eugen , et al. "PNA: Synthetic Polyamide Nucleic Acids with Unusual Binding Properties." Angewandte Chemie International Edition 37.20(1998):2796-2823.
- Dean, David A. . "Peptide nucleic acids: versatile tools for gene therapy strategies." Advanced Drug Delivery Reviews 44.2-3(2000):81-95.
- Tirayut, Vilaivan . "Fluorogenic PNA probes." Blstn Journal of Organic Chemistry 14(2018):253-281.
- Bahal, Raman et al. “In vivo correction of anaemia in β-thalassemic mice by γPNA-mediated gene editing with nanoparticle delivery.” Nature communications vol. 7 13304. 26 Oct. 2016, doi:10.1038/ncomms13304
